Jetson AGX Orin 开发者套件开始使用 NVIDIA® Jetson AGX Orin™ 开发者套件进行开发。此套件包含高性能、高能效的 Jetson AGX Orin 模组，可以模拟整个 Jetson Orin 模组系列。此开发者套件具有高达 275 TOPS 的算力，可用于运行 NVIDIA AI 软件栈，为制造、物流、零售、服务、农业、智慧城市、医疗健康和生命科学等行业打造先进的
开始使用 NVIDIA® Jetson AGX Orin™ 开发者套件进行开发。此套件包含高性能、高能效的 Jetson AGX Orin 模组，可以模拟整个 Jetson Orin 模组系列。此开发者套件具有高达 275 TOPS 的算力，可用于运行 NVIDIA AI 软件栈，为制造、物流、零售、服务、农业、智慧城市、医疗健康和生命科学等行业打造先进的机器人和边缘 AI 应用。
The NVIDIA® Jetson AGX Orin™ Developer Kit includes a high-performance, power-efficient Jetson AGX Orin module, and can emulate the other Jetson Orin modules. You now have up to 275 TOPS and 8X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.
Supported by NVIDIA JetPack™ and use-case specific software platforms including Isaac for robotics, and Metropolis for smart cities, this developer kit provides everything you need to get started right away.
ORDER NOW GET STARTEDDeveloper Kit Contents
Jetson AGX Orin module with heat sink and reference carrier board
802.11ac/abgn wireless Network Interface Controller
USB-C power adapter and cord
Quick Start and Support Guide
The Tech Specs

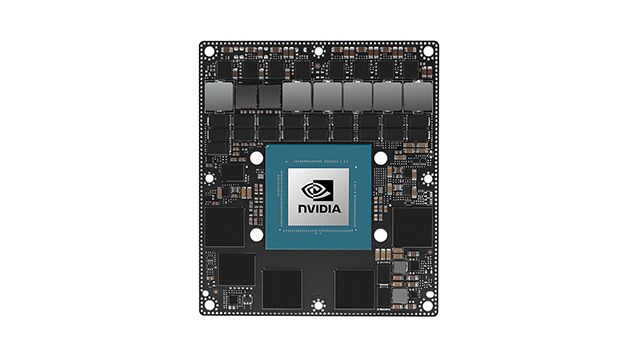

| JETSON AGX ORIN MODULE | |
|---|---|
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor cores |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| DL Accelerator | 2x NVDLA v2.0 |
| Vision Accelerator | PVA v2.0 |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
| Video Decode | 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265) |
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
| REFERENCE CARRIER BOARD | |
|---|---|
| Camera | 16 lane MIPI CSI-2 connector |
| PCIe | x16 PCIe slot supporting x8 PCIe Gen4 |
| RJ45 | Up to 10 GbE |
| M.2 Key M | x4 PCIe Gen 4 |
| M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S |
| USB Type-C | 2x USB 3.2 Gen2 with USB-PD support |
| USB Type-A | 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 |
| USB Micro-B | USB 2.0 |
| DisplayPort | DisplayPort 1.4a (+MST) |
| microSD slot | UHS-1 cards up to SDR104 mode |
| Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
| Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
Jetson AGX Orin 64GB
275 稀疏 | 138 稠密 INT8 TOPS
15W 至 60W
1599 美元（1KU 以上）
2022 年 10 月起售
Jetson AGX Orin 32GB
200 稀疏 | 100 稠密 INT8 TOPS
15W 至 40W
899 美元（1KU 以上）
2022 年 7 月起售
